It’s a sweltering summer afternoon. You’re home, expecting a blast of cool air from your vents, but instead, you’re met with a weak, lukewarm sigh. You walk over to the thermostat.
Yeah, it’s set to cool. You hear a faint click from your HVAC system, followed by a persistent, worrying hum from the outdoor unit.
But the fan? It’s not spinning. The house is getting warmer, and your frustration is rising. You’ve just joined the club. The “my AC unit won’t start” club.
Here’s the thing. At that moment, you’re not thinking about complex machinery. You’re thinking about the heat.
But what’s happening inside that metal cabinet outside your home is a tale of a tiny, overworked component that just gave up the ghost. It’s a story of a failed electrical jockey that your entire air conditioning system relies on.
That component is the HVAC capacitor.
And if you own a home with an air conditioner or heat pump, understanding what it does isn’t just technical trivia. It’s power.
It’s the difference between a panic-induced call to an emergency HVAC technician and knowing exactly what’s going on, why it matters, and what to do next.
What Capacitors Actually Do in Your HVAC System
Credits: The Engineering Mindset
A capacitor stores and releases electrical energy. It’s not a battery like you know them. It gives your motors the power jolts they need to start and keep running.
Think of it this way: starting a large, heavy-duty motor, like the compressor in your outdoor unit, requires a massive, sudden surge of power.
It’s the electrical equivalent of trying to push a stalled car. You need a huge, initial heave to get it moving. Once it’s rolling, it takes much less effort to keep it going.
Your home’s electrical wiring provides the steady “keep it going” power. But it can’t provide that massive initial heave on its own.
That’s the capacitor’s job.
It stores the electrical energy needed for that heave, holding it in reserve until the exact millisecond the motor needs it. It gives your compressor and fan motor the kick in the pants they need to roar to life.
Then, for the fan motor, it often continues to provide a steadying current, like a pacemaker, ensuring it runs smoothly and efficiently throughout the entire cooling cycle.
The damage runs deeper than you think. When a capacitor weakens or fails, it’s not just about losing cool air in your home.
The compressor, the actual workhorse of your AC system, starts fighting harder to do its job, struggling through each startup cycle, getting closer to breaking down altogether. And when that happens, you’re looking at a repair bill that’ll make you wince.
Start vs. Run Capacitors: What Sets Them Apart
Most AC systems don’t just have one capacitor. They’ve got two different kinds, or sometimes both in the same unit. Sounds messy, but it makes sense once you know what each one’s for.
Start Capacitors: The Quick Burst Specialists
A start capacitor does one thing, and it does it well. When your AC motor needs to wake up, it delivers a massive electrical jolt for about 1-2 seconds. Think of it like a sprinter exploding out of the blocks, all power, all at once, then it’s finished.
- What It Does: The motor can’t get going on its own. This capacitor gives it that hard initial kick to break free from standing still.
- How It Works: Once the motor’s spinning, a switch cuts the capacitor loose from the circuit. Now it just sits there, slowly charging back up until you fire up the system again.
- Picture It Like This: A compressed spring works the same way. You press it down, hold the tension, then let go and it springs forward hard.
You’ll run into these in older units or bigger HVAC systems where the motor needs that extra push to get started.
Run Capacitors: The Always-On Type
A run capacitor stays connected the whole time the motor’s running. It’s not looking for one big moment. Instead, it keeps the power steady and smooth, so the motor doesn’t have to strain.
- What It Does: Makes sure electricity flows clean and balanced. The motor stays cool, doesn’t burn itself out, and uses less energy doing it.
- How It Works: It charges and discharges continuously, keeping everything in balance the whole time.
- Picture It Like This: Shock absorbers in a car do something similar. The grid sends power in rough waves, so the capacitor smooths it out into one clean current the motor can actually use.
When one fails, the motor gets too hot. That’s usually your sign something’s wrong.
Dual Capacitors: The Two-in-One Powerhouse
To save space and simplify wiring, most modern residential air conditioners and heat pumps use a dual capacitor. It’s exactly what it sounds like: two capacitors in a single, compact case.
It has three common terminals, often labeled:
- HERM (for the compressor)
- FAN (for the fan motor)
- C (for the common connection)
This one component handles the heavy lifting for both the compressor (giving it a start boost and smoothing its run) and the fan motor (stabilizing its operation). When a technician says you have a bad capacitor, they’re most often referring to this dual capacitor.

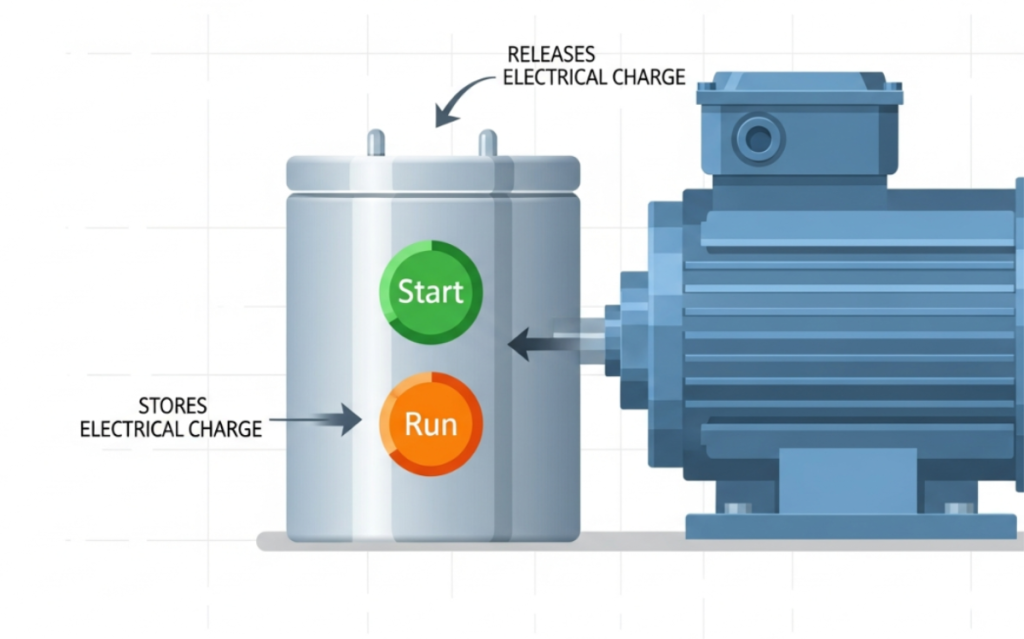

How Capacitors Work: The Simple Version
You don’t need to be an engineer to understand this. It’s actually pretty straightforward.
Inside that metal can are two thin metal sheets sitting right next to each other, with insulation between them. The whole thing gets rolled up tight and shoved into the case.
- Storing Power (Charging): Power comes in and piles up between those metal sheets. Like water backed up behind a dam. The capacitor just holds all that energy there, waiting.
- Releasing Power (Discharging): Thermostat calls for cooling, motor needs to turn on, the circuit opens. All that energy dumps out in a split second. One hard shove of power and the motor spins.
Think of it like a dam holding back water. The reservoir (the capacitor) fills up slowly with water (electrical energy).
When you need power for a city (start the motor), you open the floodgates and all that stored energy rushes out at once.
Once the motor’s already running, the run capacitor works like a smaller valve that keeps the flow steady, making sure water keeps hitting the turbines.
This charging and discharging cycle happens every time your system turns on. It’s hard work, and that’s why capacitor failure is one of the most common problems you’ll deal with in your air conditioner.

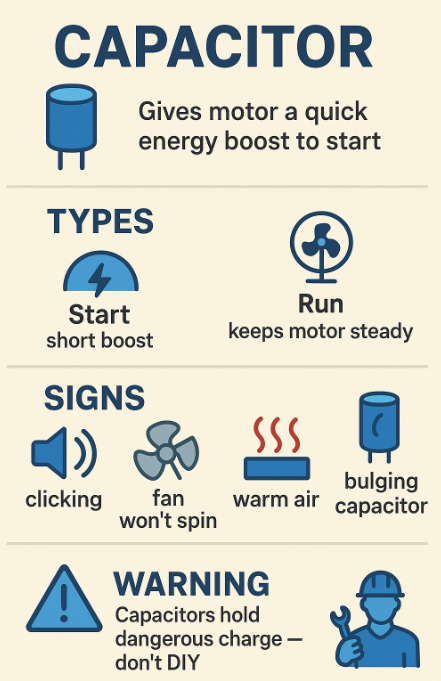

Common Symptoms of a Bad Capacitor
Your HVAC system will tell you when the capacitor’s going bad. You just have to listen. Ignoring them is a recipe for a much more expensive repair.
Here are the most common capacitor symptoms:
- The AC Won’t Start (The Most Obvious Sign): You hear a click from the thermostat, maybe a hum or a buzz from the outdoor unit, but the compressor and fan don’t kick on. The capacitor is like a dead battery in your car; it doesn’t have the juice to crank the engine. This is the classic sign of a bad capacitor.
- That Tell-Tale Humming Noise: That persistent, low hum you hear? That’s the sound of your compressor and fan motor trying to start. They’re receiving the steady stream of “run” power from your home, but they’re not getting the initial “start” jolt from the capacitor. They’re straining against an electrical wall, and if left in this state, they will quickly overheat and burn out.
- Inefficient Cooling (Slow Breakdown): The capacitor gets weaker over time. Yeah, it’ll still start the system, but there’s not enough juice left to keep it running right. Your AC blows warm instead of cold, the cooling cycle drags on, it can’t keep up with what you need. Meanwhile the motor’s burning itself out, pushing way harder than it should.
- Sky-High Energy Bills: A motor that’s struggling because of a weak capacitor is an inefficient motor. It has to work harder, draw more amps, and use more electricity to do the same job. If you see a sudden, unexplained spike in your energy bills during the cooling season, a failing capacitor could very well be the silent culprit.
- The Visual Bulge or Leak: If you’re brave enough to turn off the power and take a look (safety first!), a physically bad capacitor will often show it. The top of a capacitor is usually flat. If it’s bulging upward, like a can of soda that’s been in the freezer, it’s a sure sign of failure. In severe cases, a brownish, oily residue might have leaked out from the bottom. It’s done.
When to Call an HVAC Technician: This Is Not a DIY
Here’s where we get to the most critical part of this entire discussion.
Do not, under any circumstances, attempt to replace a capacitor yourself if you are not a trained professional.
I know the part might only cost $15 online. I know you’re handy. It doesn’t matter.
This is the one piece of advice you must take from this article.
A capacitor is not like a battery you pop in and out of a remote. Even with the power to the HVAC unit turned off, a capacitor can still hold a lethal electrical charge, sometimes for days.
We’re talking about a charge powerful enough to stop your heart. Discharging it requires a specific tool and specific knowledge.
This is not a scare tactic. It’s a safety fact.
When you suspect a bad capacitor, your only move is to call a licensed HVAC professional. [2]
Here’s why that’s the right call:
- Safety: An HVAC technician has the training and tools to safely discharge the capacitor and handle the replacement without risking their life. You don’t.
- Accurate Check: A professional will use a multimeter to test the capacitor’s microfarad (µF) rating, its storage capacity, to confirm it’s truly the problem and not a faulty motor or relay.
- Correct Replacement: Capacitors are not one-size-fits-all. Using one with the wrong µF or voltage rating can destroy your compressor in short order. A pro will ensure you get the exact right part.
- Warranty and Peace of Mind: A capacitor replacement done by a professional comes with a guarantee on both the part and the labor. Your DIY job comes with the risk of a $2,000 compressor bill.
Let a qualified HVAC professional handle it. It’s the only smart move.
Checklist to Help Detect Potential Problems
Before you make any decision, run through this checklist that we have created just for you. If you’re experiencing one or more of these, you’re likely on the right track.
- Is the AC not starting, with just a hum from the outdoor unit?
- Are you hearing a persistent humming noise from the condenser?
- Is your system running but blowing warm air?
- Has your system been struggling to complete a cooling cycle?
- Have your energy bills recently spiked for no clear reason?
If you checked any of these boxes, it’s time. Pick up the phone and call a licensed HVAC company.
Tell them, “My AC unit isn’t starting, and I’m hearing a hum. I suspect I might have a bad capacitor.”
You’ll sound informed. You’ll get the right service.
